Name: Brawn Mixer Direct Drive Mixer 1600 Qts. Cap., 1 HP, Direct Drive, 5.5 Impeller Dia, 208-230V/460V
SKU: Brawn Mixer WBB3085779
Availability: InStock

Sale!

Brawn Mixer Direct Drive Mixer 1600 Qts. Cap., 1 HP, Direct Drive, 5.5 Impeller Dia, 208-230V/460V

Original price was: $500.00.Current price is: $93.99.

SKU: Brawn Mixer WBB3085779 Categories: Appliances, Food & Beverage Preparation, Mixers Tags: 1 HP, 1600 Quarts qt, 208-230V/460V V, 400 Gal Conical Bottom Tank W/ A Mix Gravity Up To 1.1 & Viscosity Up To 100 cP, 60 Hz, Brawn Mixer, Foodservice & Retail, Heavy Duty Brawn Direct Drive Mixer

100% High Quality Guarantee
100% Quality Satisfaction
Unbeatable Quality Guaranteed
Multiple payment methods, 100% payment security

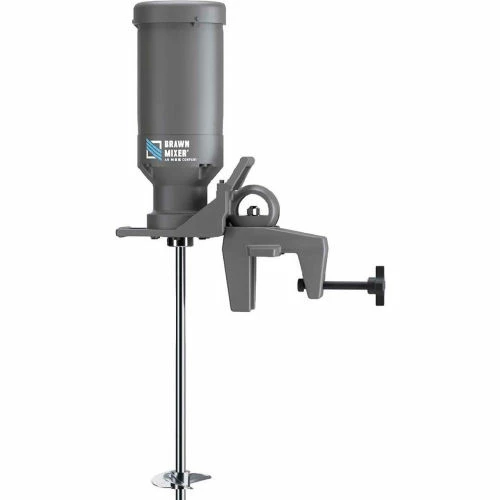

This heavy duty Brawn direct drive mixer is an excellent choice for mixing a 400 gallon conical bottom tank with a mixture specific gravity up to 1.1 and viscosity up to 100 cP. The clamp mount can attach to the top of the tank or to a separate stand. Equipped with a 1 hp, 1750 rpm, 208-230v/460v, 3ph, 60hz, TEFC, washdown & inverter rated motor, clamp mounting, 49″ shaft and 2-5.5″, square-pitch propellers. Wetted parts: 316SS. Made in the USA.

Features:

Motor Type: TEFC, Washdown & Inverter Rated Motor
Drive Type: Direct Drive
RPM: 1750
Impeller Type: Propeller
Max Shaft Length Inches: 49
Max Specific Gravity: 1.1
Max Viscosity: 100cP
Max Mixing Volume: 400 Gallons

Weight	72 lbs
Blade Diameter	5-1/2 in
Height	15 in
Width	30 in
Length	30 in
Type	Heavy Duty Brawn Direct Drive Mixer
Horsepower	1 HP
Hertz	60 Hz
For Use With	400 Gal Conical Bottom Tank W/ A Mix Gravity Up To 1.1 & Viscosity Up To 100 cP
Capacity	1600 Quarts qt
Voltage	208-230V/460V V
Material	Stainless Steel
Phase	3
Manufacturers Part Number	BD100H30-1-CC-349-1P5.5-1
Brand	Brawn Mixer
Certifications	CSA, UL
